Bybit Product Demo
Download and install steps for Bybit NinjaTools Addon Demo
updated on 6/26/2025
1. Download and import into Ninjatrader using the Control Center/Tools/Import/Ninjascript menu.
2. Restart NinjaTrader
3. If you do not have an account with Bybit, you can register a new one at https://www.bybit.com/

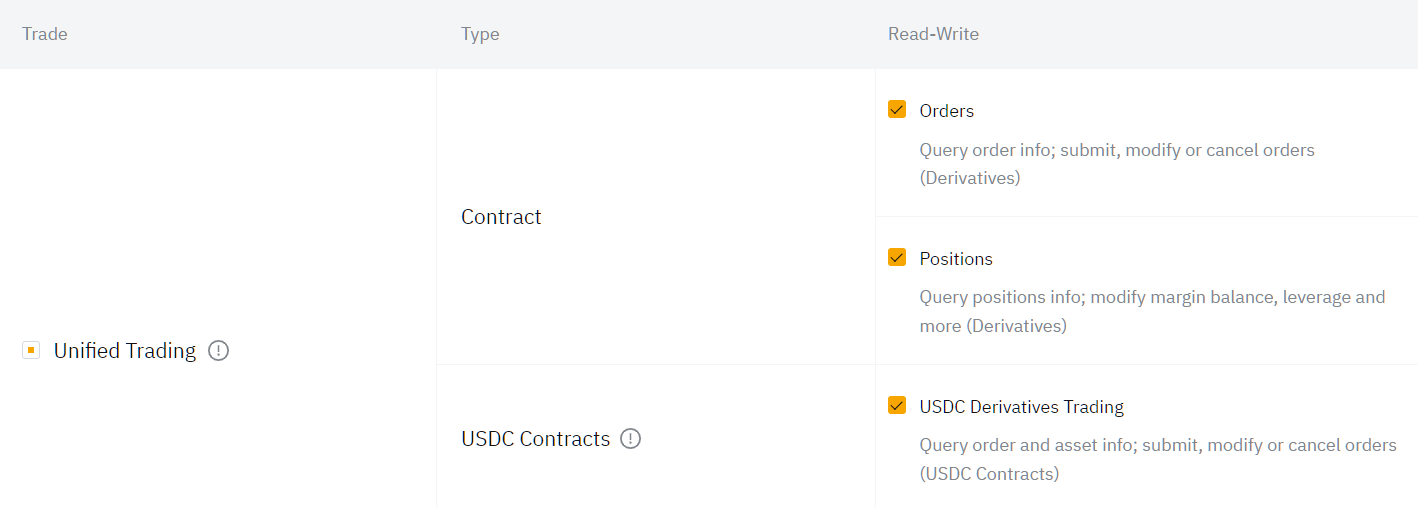

4. Create a new (system generated) api key at https://www.bybit.com/app/user/api-management with the following options:
Api Key Usage - Api Transaction,
Api Key Permissions - Read-Write,
Positions - Checked,
Orders - Checked,

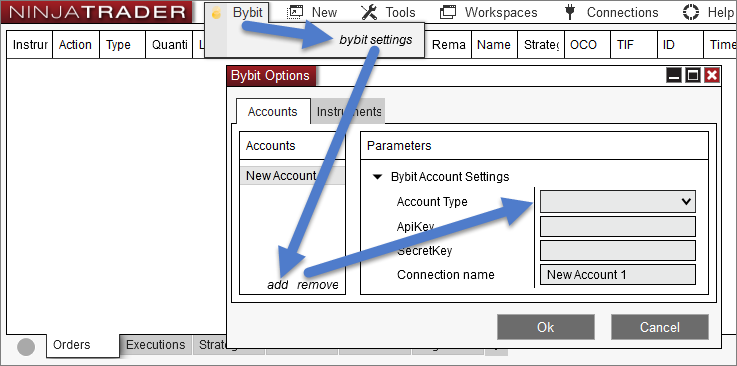

5. After the restart setup your account in the new Bybit menu. (click on the bybit settings at the bottom of Bybit menu).

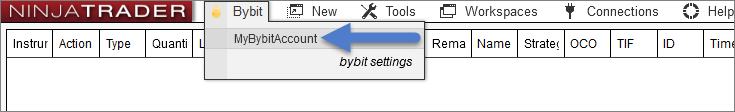

6. Connect to the feed from the Bybit menu. Make sure to connect before any other connection.

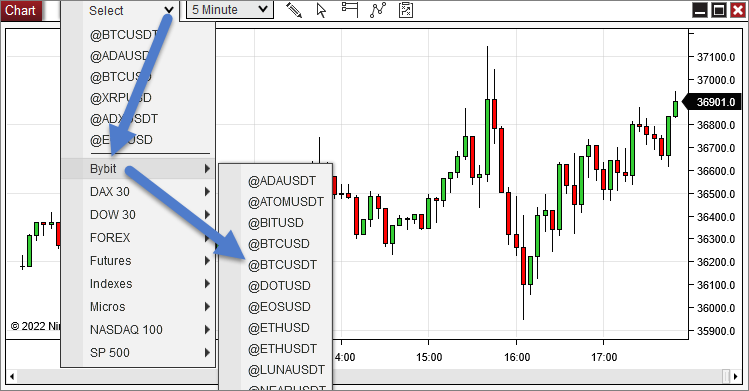

8. Open a new chart, and choose a bybit instrument from the instruments dropdown - Bybit list.
- 14 days of historical data
- Expires after 7 days
Information on Instruments
All exchange listed instrument are available from the instruments window.
The instruments window can be opened by clicking on the search icon next to the instrument selector.
Information on Position Sizes
For Inverse Perpetual contracts 1 unit in Ninjatrader represent 1 contract on the exchange.
You can find the contract specifications at https://www.bybit.com/app/contracts
For USDT Perpetual contracts 1 unit in Ninjatrader represent the minimum trade size for the given symbol at the exchange. You can check and change these order sizes in the bybit options - Instruments tab.
Troubleshoot problems with the addon
In case you experience problem with the addon first check the Control Center - Log tab
for a notification or error message which can describe what the problem is.
If you experience unknow instrument error message, or the chart is not loading,
check if you connect with the addon before any other connection.
If there is no error message or the error message does not help to solve the problem
save an image from the issue and send it to support@ninjatools.studio.
*Product Compatibility: NT8 8.0.14.0 - NT8 8.1.5.0
